The Aquilo liquid level sensor allows for measuring the liquid level in tanks. Product made in Poland.

Aquilo is a modern device that helps automate everyday life. The Aquilo transmitter is a small device containing a microwave sensor. It is installed inside the tank, anywhere on the shaft walls, with the angled surface facing down towards the liquid according to markings. The sensor is powered by mains electricity but can be installed in driveways—nothing protrudes from the tank as long as the power cable is routed to the tank.

The Aquilo sensor receives signals from the transmitter and sends readings to the cloud via WIFI. Everything happens automatically without your intervention.

The “Aquilo” app was created to manage the sensor and is available on phones and browsers. With it, you can:
● Check the current liquid level in the tank
● See the approximate fill time (the device predicts this based on the filling rate so far)
● Receive notifications when the tank level requires your attention
● View the history of previous measurements to compare results

Get permanent access to the Aquilo app free of additional charges or upgrade to PREMIUM to receive more frequent tank status updates, additional notifications, send SMS messages to the waste removal company about upcoming emptying dates, and get PREMIUM support. Check all PREMIUM benefits.

SPECIAL OFFER: 3 months of PREMIUM subscription included for free.

SPECIAL OFFER: When purchasing PREMIUM subscription with the sensor, the subscription price is xxx EUR monthly, paid annually.

Technical Specifications:
● Product dimensions:
Receiver: 73 × 53 × 85 mm, Transmitter: 100 × 90 × 60 mm. IP-67
● Operating temperature for receiver: 0°C to +50°C
● Operating temperature for transmitter: -40°C to +60°C
● Tank measurement range: 10 cm – 6 m
● Maximum distance between transmitter and receiver: up to 20 m without antenna; with an additional antenna, the range is significantly greater and depends on the individual placement of the transmitter, receiver, and signal booster antenna
● Power supply: 230V mains cable

Tank requirements:
● The distance between the liquid and the transmitter must be at least 10 cm; readings may be unreliable if the liquid is closer
● Maximum tank depth is 6 m

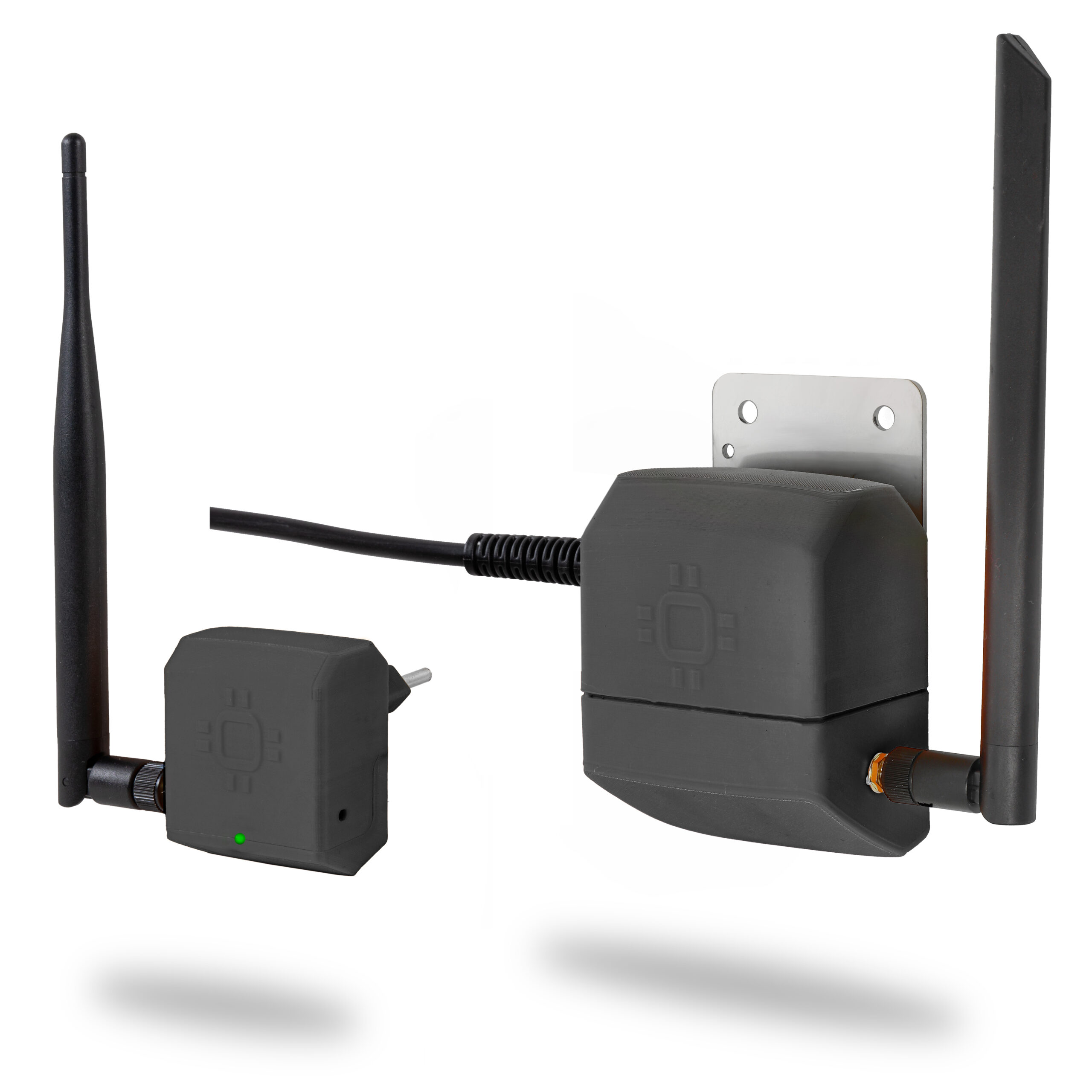

Set includes:
● Transmitter mounted inside the tank
● Receiver plugged into a building socket
● Antenna – 2 pcs
● Mounting plate
● User manual in English
● “Aquilo” mobile app available for free download permanently on the App Store or Google Play, or in PREMIUM version
